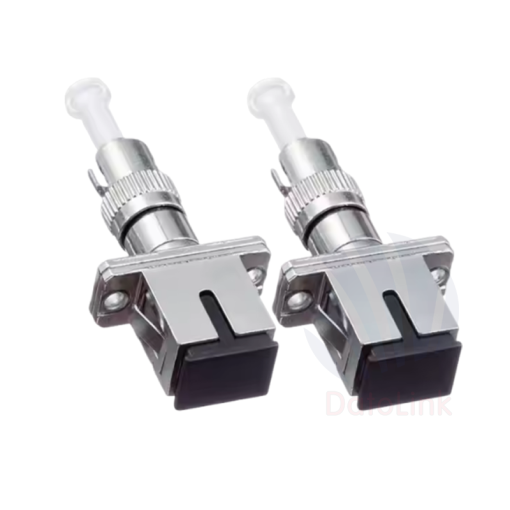

ST(M)-SC(F) MM Hybrid Adaptor

ST stands for Straight Tip – a quick release bayonet style Connector developed by AT&T. STs were predominant in the late 80s and early 90s.

SC stands for Subscriber Connector- a general purpose push/pull style Connector developed by NTT. SC has an advantage in keyed duplexibility to support send/receive channels.

Categories: Fiber Optic Adaptor&Attenuator, Fiber Optic Passive Series

Description

Feature:

* High precision alignment
* High Reliability and Stability
* Good Durability and Interchangeability
* Low Insertion Loss and High Return Loss
* Good Durability and Temperature Performance

Applications:

* CATV
* LAN & WAN
* Telecommunication networks
* FTTX, FTTH (Fiber to the Home)
* Fiber Distribution Frame and Patch Panel

Male ST to Female FC/SC/LC/ST Converters Hybrid Adapter allow users to couple from various types male connectors to female adapters. The combination of a ceramic alignment sleeve and precision molded metal housing provides consistent long-term mechanical and optical performance.

Insertion Loss	≤0.5dB Max.
Return Loss	≥50dB (UPC), ≥60dB (APC)
Plug and Unplug Force	200~600g/f
Durability	1,000 times
Exchangeability	≤0.2dB typical change after 1,000 matings
Relative Humidity	95%
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+85°C

ST(M)-SC(F) MM Hybrid Adaptor
