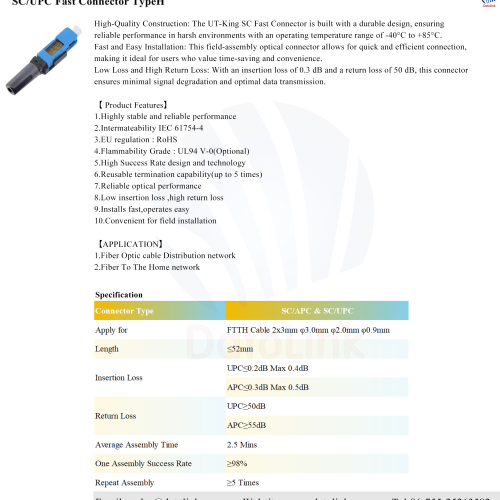

SC/UPC Fast Connector TypeH

High-Quality Construction: The UT-King SC Fast Connector is built with a durable design, ensuring reliable performance in harsh environments with an operating temperature range of -40°C to +85°C.
Fast and Easy Installation: This field-assembly optical connector allows for quick and efficient connection, making it ideal for users who value time-saving and convenience.
Low Loss and High Return Loss: With an insertion loss of 0.3 dB and a return loss of 50 dB, this connector ensures minimal signal degradation and optimal data transmission.

Categories: Fast Connector, Fiber Optic Passive Series

Description

【 Product Features】

1.Highly stable and reliable performance 2.Intermateability IEC 61754-4 3.EU regulation : RoHS 4.Flammability Grade : UL94 V-0(Optional) 5.High Success Rate design and technology 6.Reusable termination capability(up to 5 times)

7.Reliable optical performance

8.Low insertion loss ,high return loss
9.Installs fast,operates easy
10.Convenient for field installation

【APPLICATION】

1.Fiber Optic cable Distribution network

2.Fiber To The Home network

Connector Type	SC/APC & SC/UPC
Apply for	FTTH Cable 2x3mm φ3.0mm φ2.0mm φ0.9mm
Length	≤52mm
Insertion Loss	UPC≤0.2dB Max 0.4dB APC≤0.3dB Max 0.5dB
Return Loss	UPC≥50dB APC≥55dB
Average Assembly Time	2.5 Mins
One Assembly Success Rate	≥98%
Repeat Assembly	≥5 Times

SC/UPC Fast Connector TypeH
