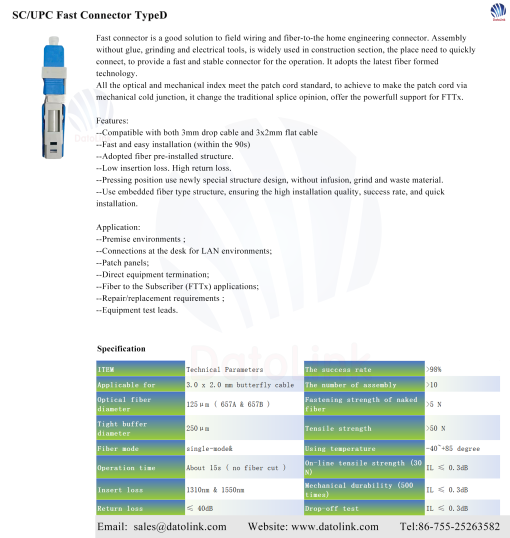

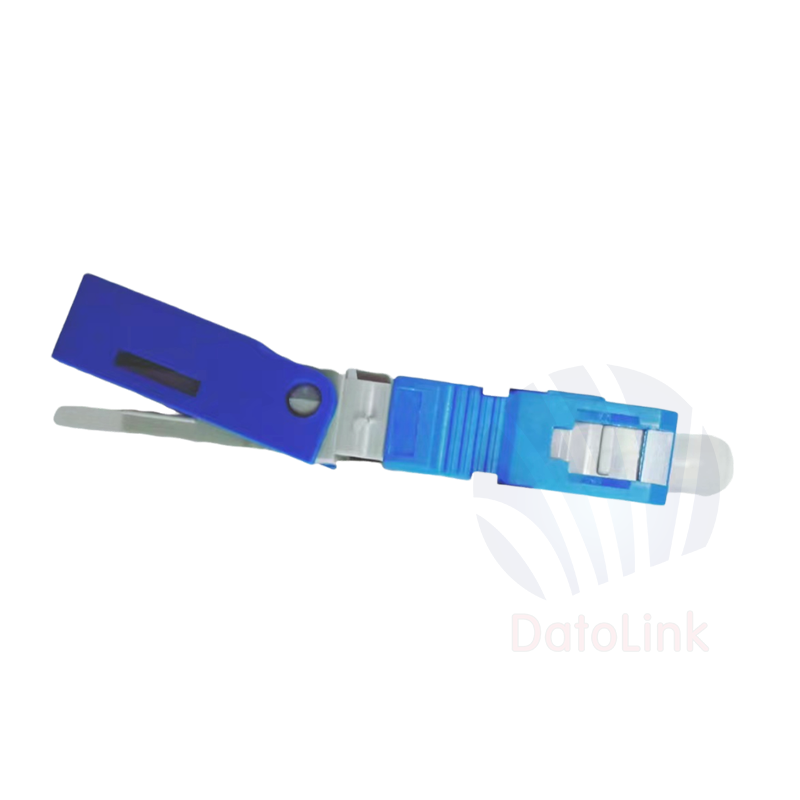

SC/UPC Fast Connector TypeD
This type of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application.
Description:
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Features
quickly assembly connetor
high return loss,low insert
cost effective portable
install quickly
reliable and superior optical performance
Technical Specifications:
| ITEM | Technical Parameters |
| Applicable for | 3.0 x 2.0 mm butterfly cable |
| Optical fiber diameter | 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | single-mode& |
| Operation time | About 15s ( no fiber cut ) |
| Insert loss | 1310nm & 1550nm |
| Return loss | ≤ 40dB |
| The success rate | >98% |
| The number of assembly | >10 |
| Fastening strength of naked fiber | >5 N |
| Tensile strength | >50 N |
| Using temperature | -40~+85 degree |
| On-line tensile strength (30 N) | IL ≤ 0.3dB |
| Mechanical durability (500 times) | IL ≤ 0.3dB |
| Drop-off test | IL ≤ 0.3dB |
