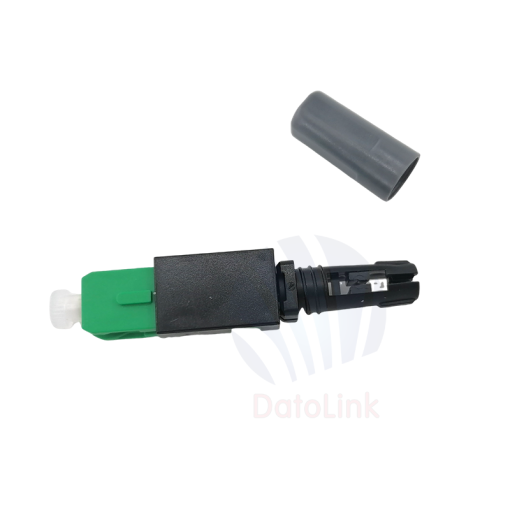

SC/UPC Fast Connector Type N
This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and highquality Zirconiu ferrules and provides a highly reliable connection in most of the network application. The FK2308SC type is available with FTTH Cable 2×1.6mm ,Φ3.0，Φ2.0，Φ0.9 .
Keyed Characteristics
- Linkage structure design, when docking with equipment and joints, the reserved Micro bend remains unchanged;
- V-slot structure design, fiber optic docking is stable and reliable;
- The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
- Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.
Application
- All fiber interconnection;
- ●Telecom Distribution and Local Area Networks; Telecom Distribution and Local Area Networks;
- FTTH and FTTX;
- Passive optical networks [ATM, WDM, Ethernet];
- Broadband, Cable TV(CATV).
| Insertion Loss | Loss detector standard line detection method |
PC: Average Value: ≤0.2dB, Maximum Value: ≤0.4dB APC: Average Value: ≤ 0.3 dB, Maximum Value: ≤ 0.5 dB |
General inspection level II, AQL 0.025 |
| Return Loss | Loss detector standard line detection method |
PC: ≥ 40 dB, APC: ≥ 55 dB. |
General inspection level II, AQL 0.025 |
| Average Assembly Time |
Normal skilled operator | ≤2.5Mins | General inspection level II, AQL 0.025 |
| One Assembly Success Rate |
Normal skilled operator | ≥98% | At least 98 per assembly |
| Repeated Assembly |
Normal skilled operator | ≥5 Times | Special inspection level S-I level, AQL 1.5 |
