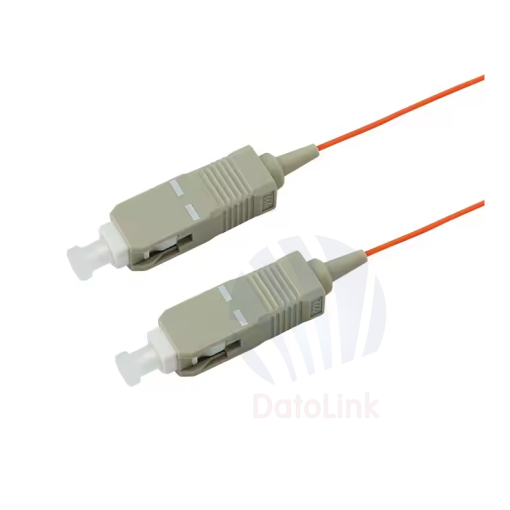

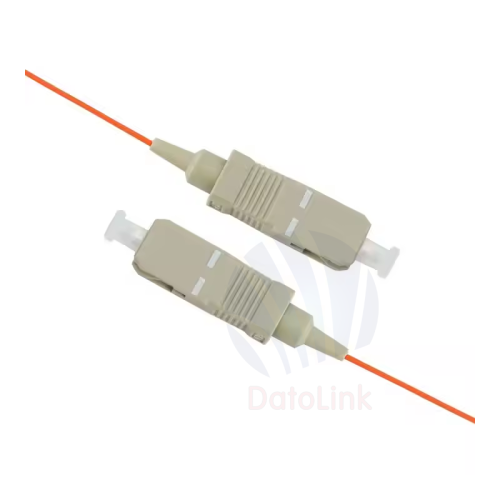

SC Pigtail
SC stands for Subscriber Connector- a general purpose push/pull style Connector developed by NTT. SC has an advantage in keyed duplexibility to support send/receive channels.
Feature
2.The insertion loss is below 0.3db.
3.100% test before shipping.
4.OM1 62.5/125μm ，OM2 50/125μm.
5.Custom connector and length is available.
6.Different fiber diameter for option: 0.9mm, 2.0mm or 3.0mm.
7.LSZH, OFNP,PVC jacket are available.
Description:
This is a high-quality multimode, OM1, 62.5/125 fiber optic pigtail with SC/UPC connectors. Fiber optic pigtails are ideal for fusion splicing. These pigtails provide the optical performance, sturdiness, and repeatability required for modern network applications by combining quality zirconia ferrules with tough composite hardware. They are quality tested to ensure they meet or exceed industry standards while adhering to only the most stringent performance specifications.
simplex and duplex fiber pigtails are available with different fiber counts (commonly 1, 6 and 12) and come in various colors. Our fiber optic pigtails are available with LC, SC, FC, and ST connectors with a typical 0.9mm outer diameter cable. We also offer jacketed and unjacketed types.
|
Parameter
|
SC, LC,FC,ST Fiber patch cord
|
|||
|
SM
|
MM
|
|||
|
PC
|
UPC
|
APC
|
PC
|
|
|
Insertion loss(typical)
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Return loss
|
≥45dB
|
≥50dB
|
≥60dB
|
≥30dB
|
|
Interchangeability
|
≤0.2dB
|
|||
|
Salt Spray
|
≤0.1dB
|
|||
|
Repeatability
|
≤0.1dB (1000 times)
|
|||
|
Vibration
|
≤0.2dB (550Hz 1.5mm)
|
|||
|
Temperature
|
≤0.2dB (-40+85 sustain 100 hours)
|
|||
|
Humidity
|
≤0.2dB (-40+85 sustain 100 hours)
|
|||
|
Apex Offset
|
0μm ~ 50μm
|
|||
|
Radius of Curvature
|
7mm ~ 25mm
|
|||
