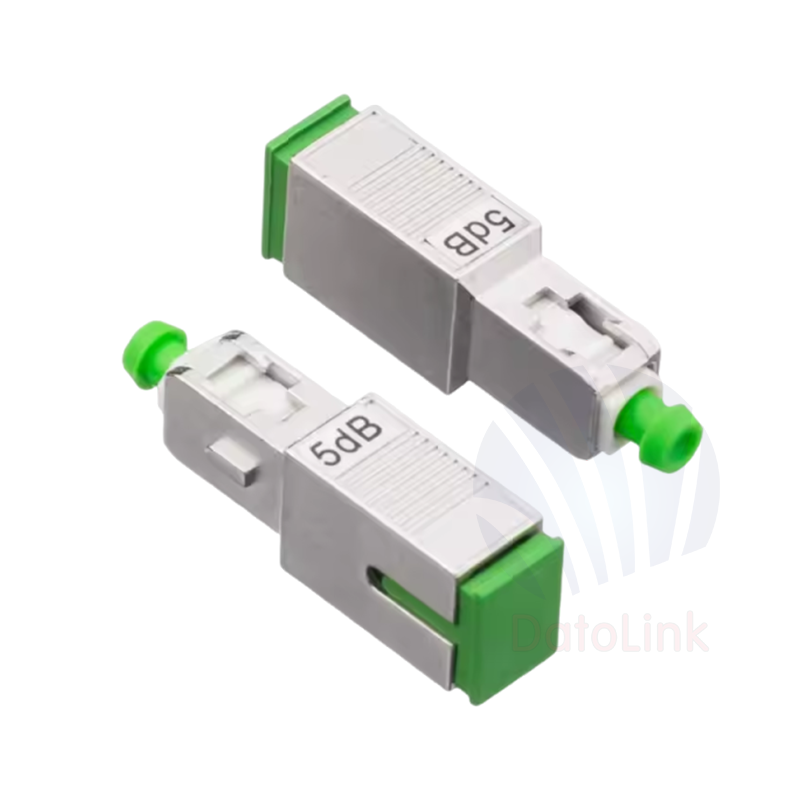

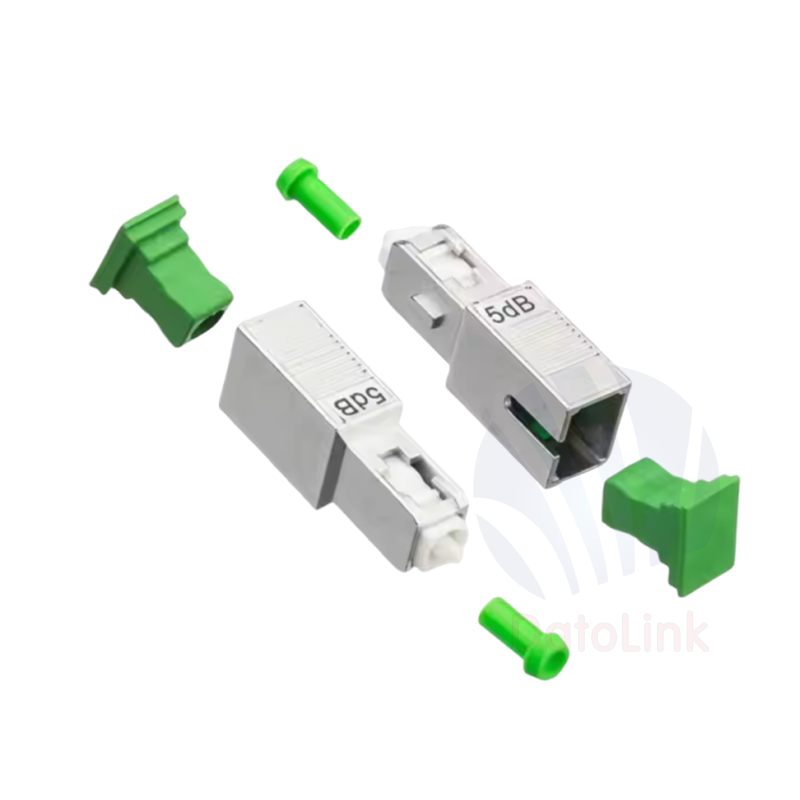

SC APC Fiber Optical Attenuator
Product Description:
An attenuator is a control component whose main function is to reduce the signal strength passing through the attenuator. This type of component is generally used to balance the signal level in the signal chain, expand the dynamic range of the system, provide impedance matching, and implement various calibration techniques in terminal application design
Features :
* Standard of IEC, Bell core
* Compact and simple structure, light weight
* Stable Performance 1310&1550±25nm is available
* Low attenuation error, high return loss
* Attenuation Accuracy: +/-0.5(1-10) +/-1.0(11-30)
* Operating Wavelength: SM:1310nm, 1550nm
* Polarization dependent loss: Less than 0.2dB
* Maximum Optical Input Power: 200mW
* Compact and simple structure, light weight
* Stable Performance 1310&1550±25nm is available
* Low attenuation error, high return loss
* Attenuation Accuracy: +/-0.5(1-10) +/-1.0(11-30)
* Operating Wavelength: SM:1310nm, 1550nm
* Polarization dependent loss: Less than 0.2dB
* Maximum Optical Input Power: 200mW
Applications:
* Power Level Adjustment 0f Optical
* Fiber Communication Networks.
* EDFA
* Dynamic Power Leveling in Optical Add/Drop Multiplexing
* Dynamic Power Balancing in DWDM Systems
* CATV Systems
* Optical Network Equipment
* Bi-Directional Systems
* Fiber Communication Networks.
* EDFA
* Dynamic Power Leveling in Optical Add/Drop Multiplexing
* Dynamic Power Balancing in DWDM Systems
* CATV Systems
* Optical Network Equipment
* Bi-Directional Systems
Technical Parameter:
|
Connector Type
|
SC/FC/ST/LC/MU/MTRJ
|
|
Operating Wavelength
|
1310,1550 nm
|
|
Attenuation Value
|
1dB~10dB (±1dB), 15, 20, 25dB
|
|
Optical In-put Power
|
≥300 mW
|
|
Polarization Loss
|
≤0.20 dB
|
|
Return Loss (dB)
|
P Grade(Return Loss≥50dB) , A Grade(Return Loss≥40dB)
|
|
Operating Temp (℃)
|
-30—+75
|
|
Storage Temp (℃)
|
-40—+85
|
