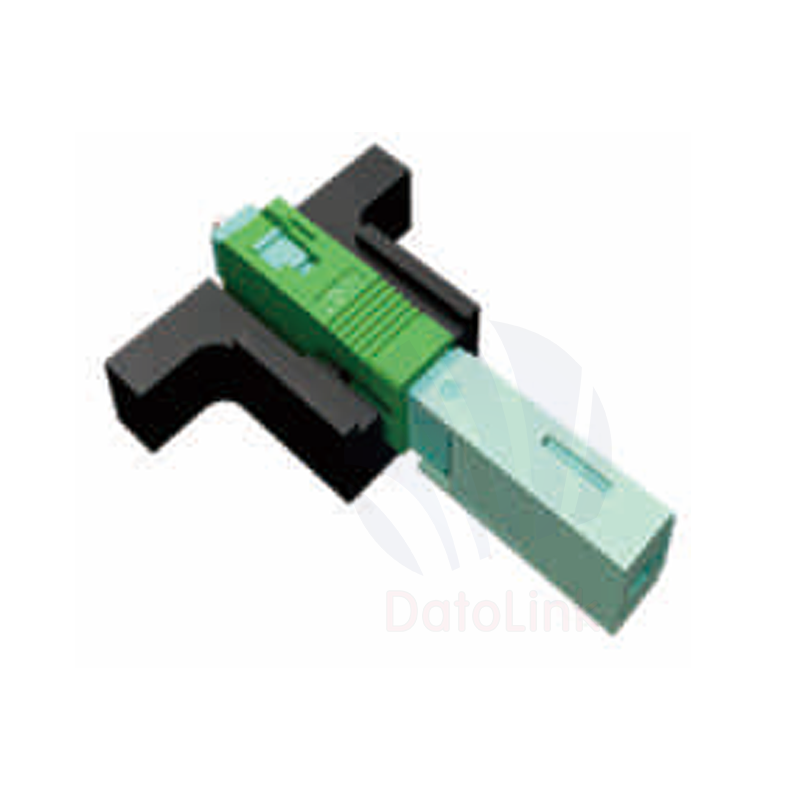

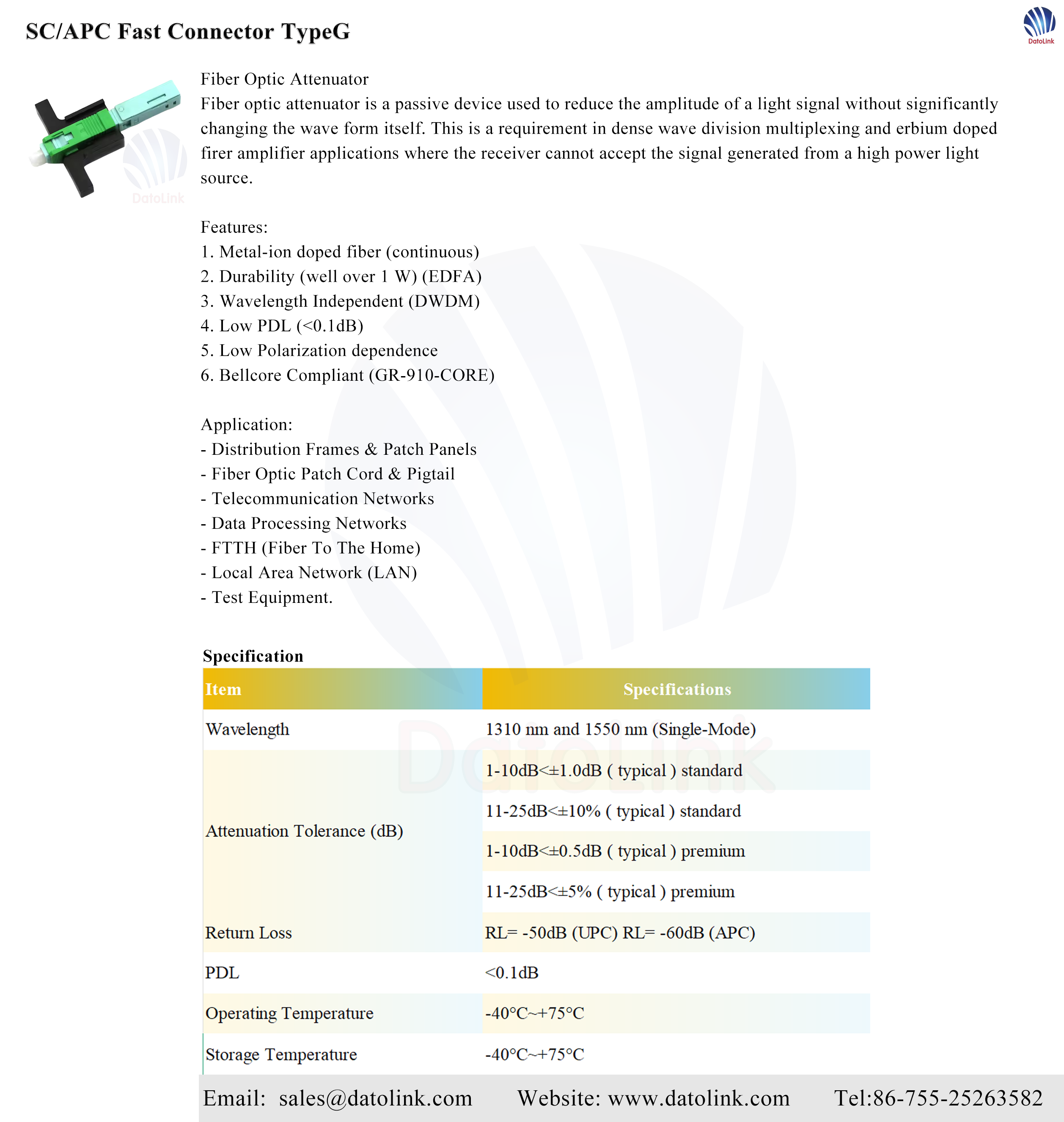

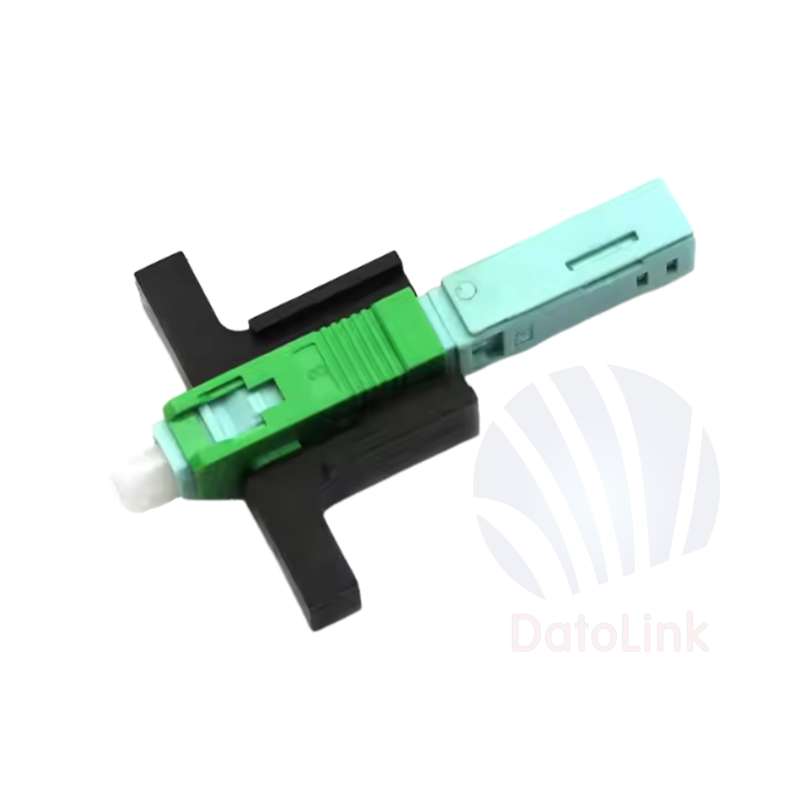

SC/APC Fast Connector TypeG
Fiber Optic Attenuator
Fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is a requirement in dense wave division multiplexing and erbium doped firer amplifier applications where the receiver cannot accept the signal generated from a high power light source.
Features:
1. Metal-ion doped fiber (continuous)
2. Durability (well over 1 W) (EDFA)
3. Wavelength Independent (DWDM)
4. Low PDL (<0.1dB)
5. Low Polarization dependence
6. Bellcore Compliant (GR-910-CORE)
2. Durability (well over 1 W) (EDFA)
3. Wavelength Independent (DWDM)
4. Low PDL (<0.1dB)
5. Low Polarization dependence
6. Bellcore Compliant (GR-910-CORE)
|
Item
|
Specifications
|
|
Wavelength
|
1310 nm and 1550 nm (Single-Mode)
|
|
Attenuation Tolerance (dB) |
1-10dB<±1.0dB ( typical ) standard
|
|
11-25dB<±10% ( typical ) standard
|
|
|
1-10dB<±0.5dB ( typical ) premium
|
|
|
11-25dB<±5% ( typical ) premium
|
|
|
Return Loss
|
RL= -50dB (UPC) RL= -60dB (APC)
|
|
PDL
|
<0.1dB
|
|
Operating Temperature
|
-40°C~+75°C
|
|
Storage Temperature
|
-40°C~+75°C
|
