Item
|
LC SC FC ST MU MPO
|
||||
SM
|
MM
|
||||
PC
|
UPC
|
APC
|
PC
|
UPC
|
|
Returm Loss
|
≥45dB
|
≥50dB
|
≥55dB
|
≥30dB
|
≥40dB
|
Insertion Loss
|
1~5dB≤±0.5dB 6~30dB ±≤10%
|
||||
Wave Length
|
SM:1310nm&1550nm MM:850nm&1300nm
|
||||
Ferrule
|
Zirconia Ceramic
|
||||
Humidity
|
95%RH
|
||||
Bandwidth
|
±40nm
|
||||
Operating Temperature
|
-40 °C~+95°C
|
||||
Storage Temperature
|
-55 °C~+85°C
|

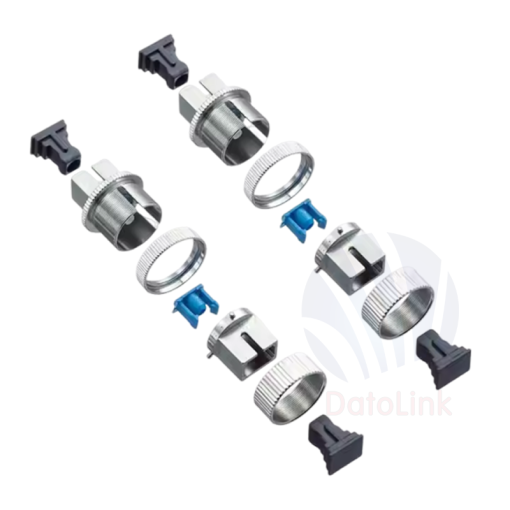

SC Adjustable Attenuator
Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power at a certain level, the most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level.
