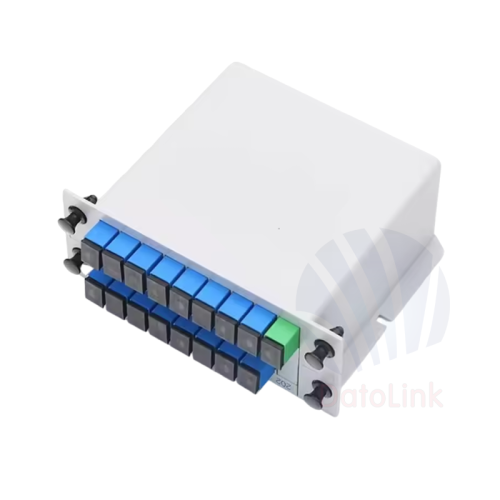

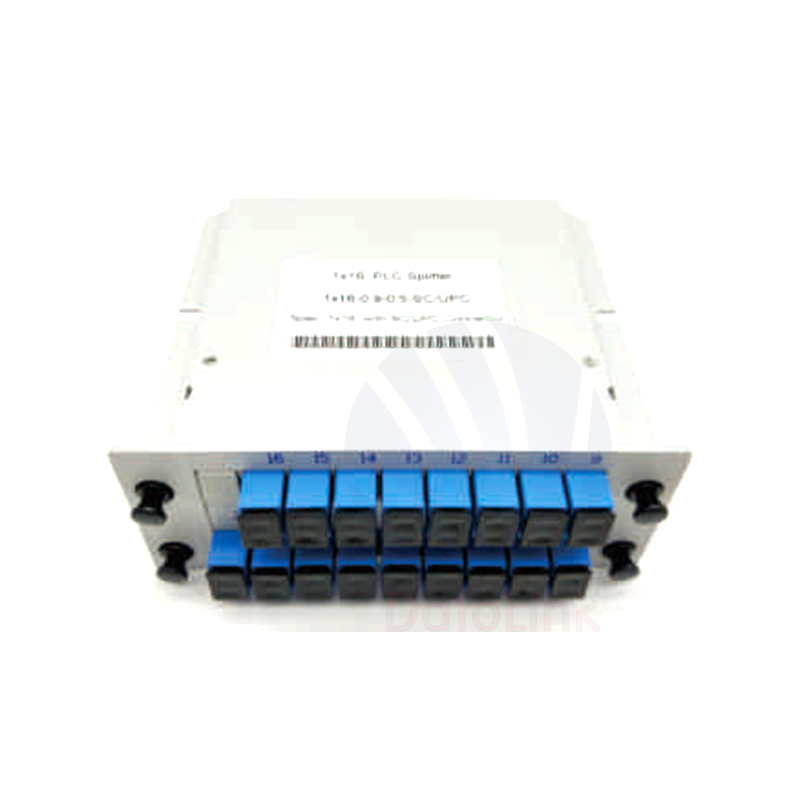

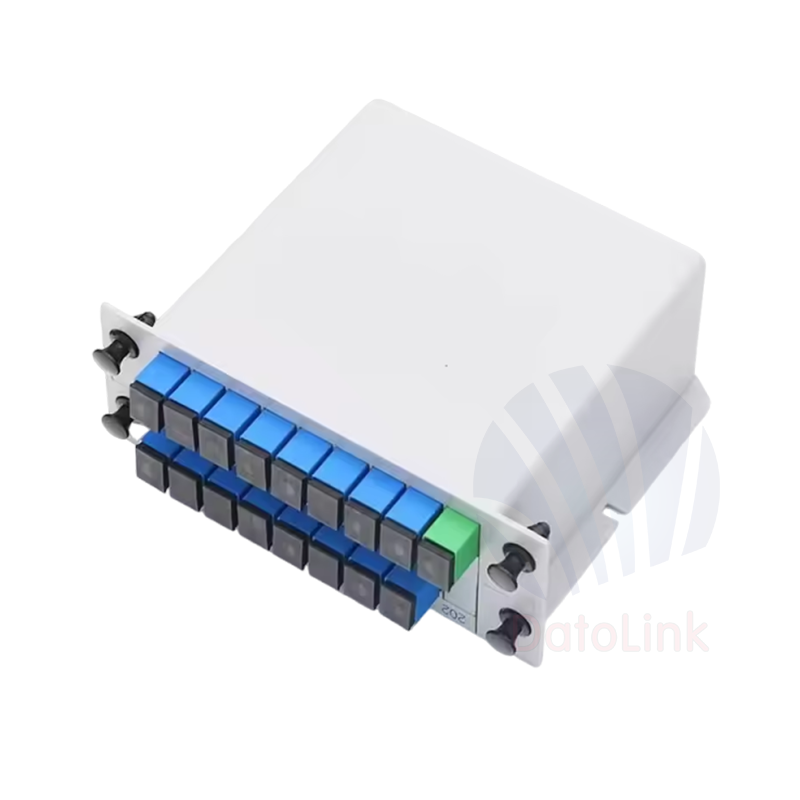

LGX Type PLC Splitter 1×16
High-Quality Fiber Optic Splitter: This Fiber Optical PLC Splitter 1×4 SC/UPC Cassette Card Inserting PLC LGX Splitter offers a uniform split ratio, ensuring reliable and consistent signal transmission in FTTH FTTC system applications.
Wide Operating Temperature Range: The splitter operates within a wide temperature range of -40°C to +85°C, making it suitable for various environments, including harsh outdoor conditions.
Low Return Loss and Loss Stability: With a return loss of 60dB and temperature-dependent loss of 0.5dB, this splitter provides stable and efficient signal transmission with minimal signal degradation.
Multi-Network Compatibility: This PLC splitter supports various networks, including wireless LAN, wired LAN, TCP/IP, POE, GPRS, WiFi, 4G, GSM, and 3G, making it a versatile solution for different network applications.
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength:From 1260nm to 1650nm
- Wide Operating Temperature: From -40°C to 85°C
- High Reliability and Stability
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
|

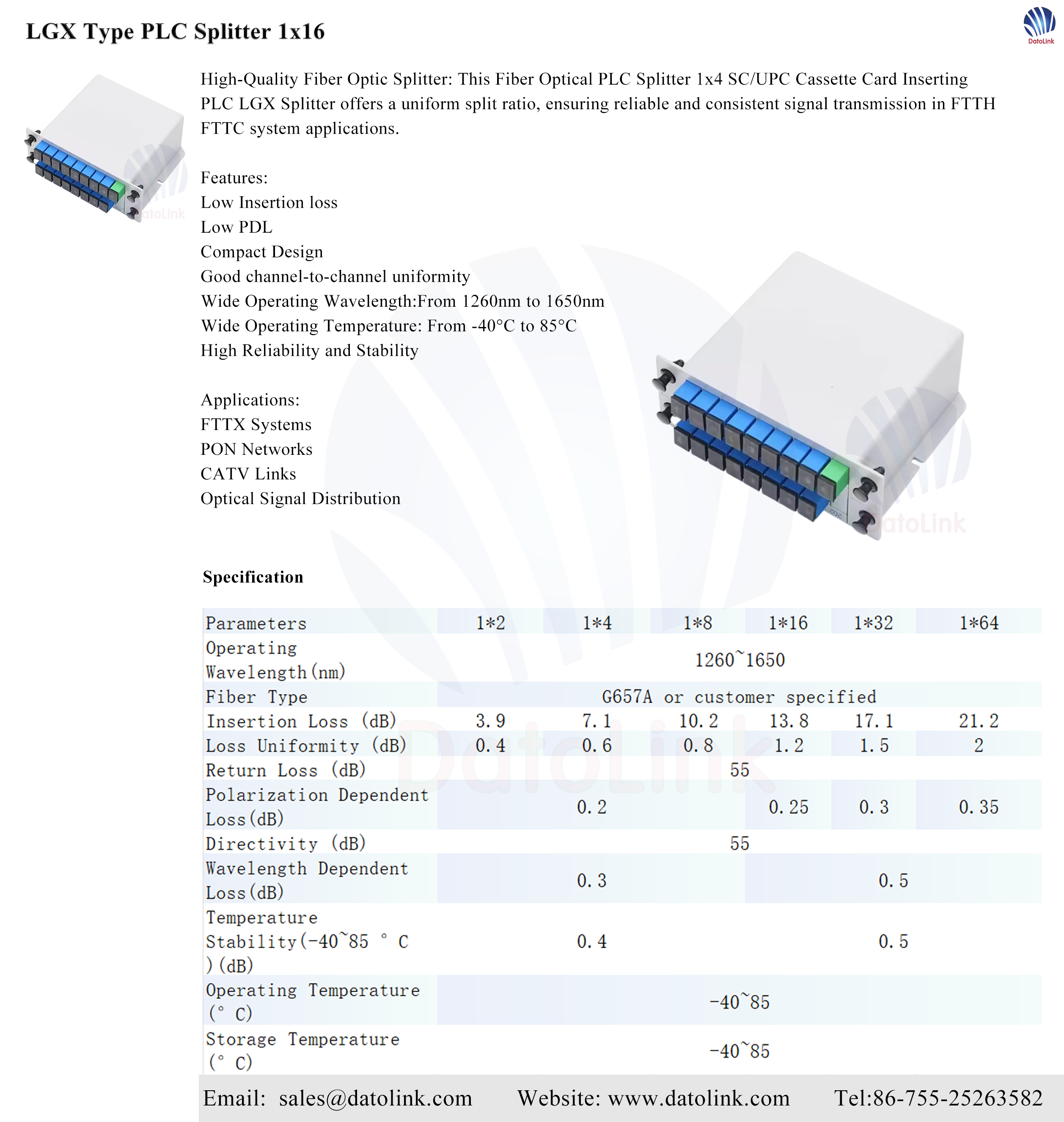

Parameters
|
1*2
|
1*4
|
1*8
|
1*16
|
1*32
|
1*64
|
|
Operating Wavelength(nm)
|
1260~1650
|
|||||
|
Fiber Type
|
G657A or customer specified
|
|||||
|
Insertion Loss (dB)
|
3.9
|
7.1
|
10.2
|
13.8
|
17.1
|
21.2
|
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
|
Return Loss (dB)
|
55
|
|||||
|
Polarization Dependent Loss(dB)
|
0.2
|
0.25
|
0.3
|
0.35
|
||
|
Directivity (dB)
|
55
|
|||||
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.5
|
||||
|
Temperature Stability(-40~85 °C )(dB)
|
0.4
|
0.5
|
||||
|
Operating Temperature (°C)
|
-40~85
|
|||||
|
Storage Temperature (°C)
|
-40~85
|
|||||
