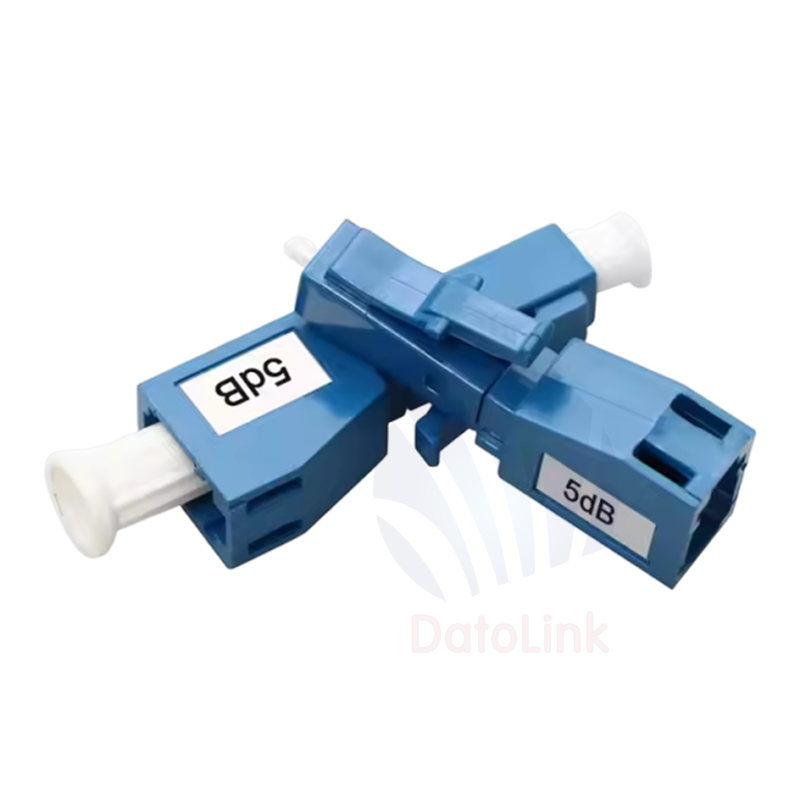

LC UPC Fiber Optical Attenuator
These fiber optic attenuators consist of a male LC/UPC connector on one end and a female LC/UPC connector on the other end. When a cable end in inserted into the female end, the remaining male end can be connected to the equipment where the cable would otherwise connect directly, but providing the desired signal strength reduction. This attenuator is available in many dB attenuation values between 1dB and 30dB.
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.
SINGLEMODE ATTENUATORS
Operating Temperature : -40ºC – 75º
CAttenuation : 1dB to 10 dB, 15 dB, 20 dB, 25 dB, 30 dB
Operating Wavelength : 1260 nm ~ 1620 nm (nanometers)
Attenuation Tolerance : ≤ 10 dB ± 0.5 dB; ≥ 11dB ± 10% of the nominal value
Reflectance: -50 dB (UPC); -60 dB (APC)
MUL TIMODE ATTENUATORS
Operating Temperature : -40ºC – 75ºC
Attenuation : 1dB to 10 dB, 15 dB and 20 dB
Operating Wavelength : 850 nm or 1300 nm (nanometers)
Attenuation Tolerance : ≤ 10 dB ± 1 dB; ≥ 11dB ± 10% of the nominal value
|
Operation wavelength
|
SM: 1200 to 1600nm or 1310/1550nm
|
|
MM: 850nm, 1300nm
|
|
|
Return Loss
|
≥ 50 db (PC)
|
|
≥ 55 db (UPC)
|
|
|
≥ 65 db (APC)
|
|
|
Attenuation Accuracy
|
+/-0.5 db for 1 to 5db attenuation
|
|
+/-10% for 6 to 30db attenuation
|
|
|
Polarization Dependent loss
|
≤ 0.2db
|
|
Mechanical endurance
|
>1000
|
|
Maximum optical Input power
|
200MW
|
|
Operating Temp Range
|
-40 to + 80degree
|
