LC-ST Hybrid AdapterA

LC-ST Hybrid AdapterA

LC-ST Hybrid AdapterA

LC stands for Lucent Connector. The LC is a small form-factor Fiber optic connector.
The LC Connector uses a 1.25 mm ferrule, half the size of the SC. Otherwise; it is a standard ceramic Ferrule connector. The LC has good performance and is highly favored for single mode. APC polish is with an angle for 8 degrees in the ferrule.

Categories: Fiber Optic Passive Series, Hybrid Adaptor

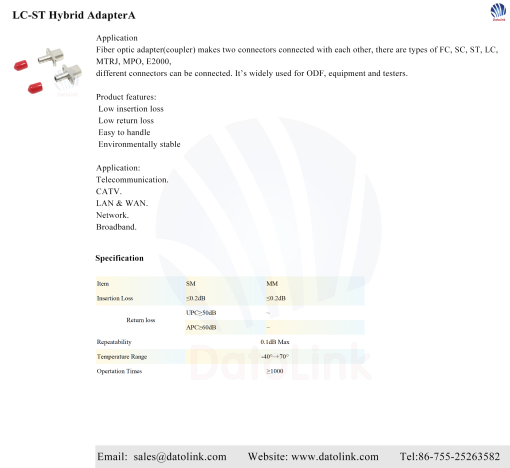

Description

Application：

Fiber optic adapter(coupler) makes two connectors connected with each other, there are types of FC, SC, ST, LC, MTRJ, MPO, E2000,
different connectors can be connected. It’s widely used for ODF, equipment and testers.

End face	UPC
Item	SM	_MM
			Insertion Loss	≤0.2dB	≤0.2dB
Return loss	UPC≥50dB APC≥60dB	~ ~
Repeatability	0.1dB Max
Temperature Range	-40°~+70°
Opertation Times	≥1000

→
