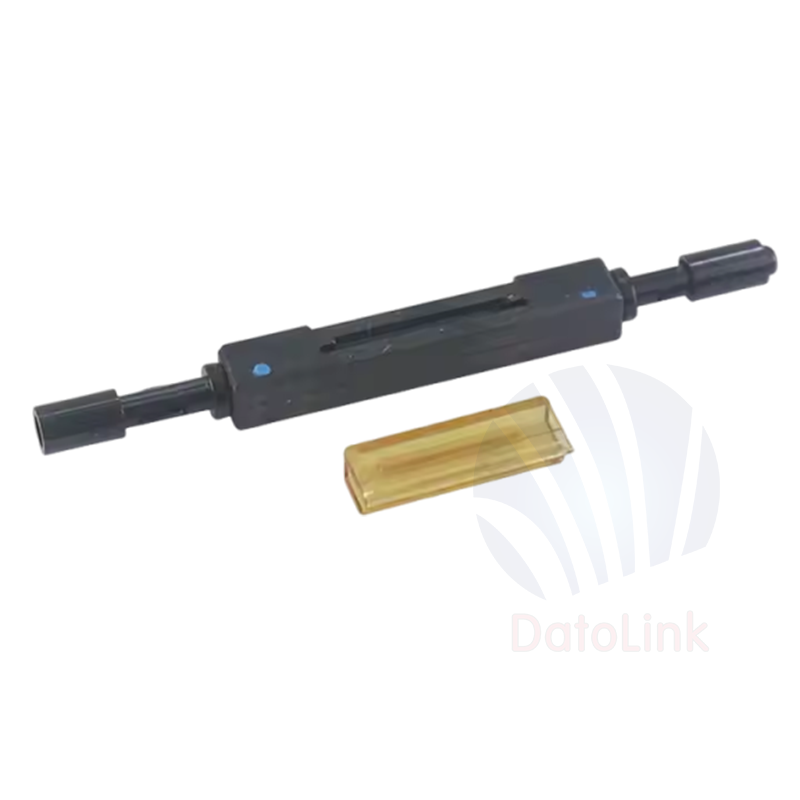

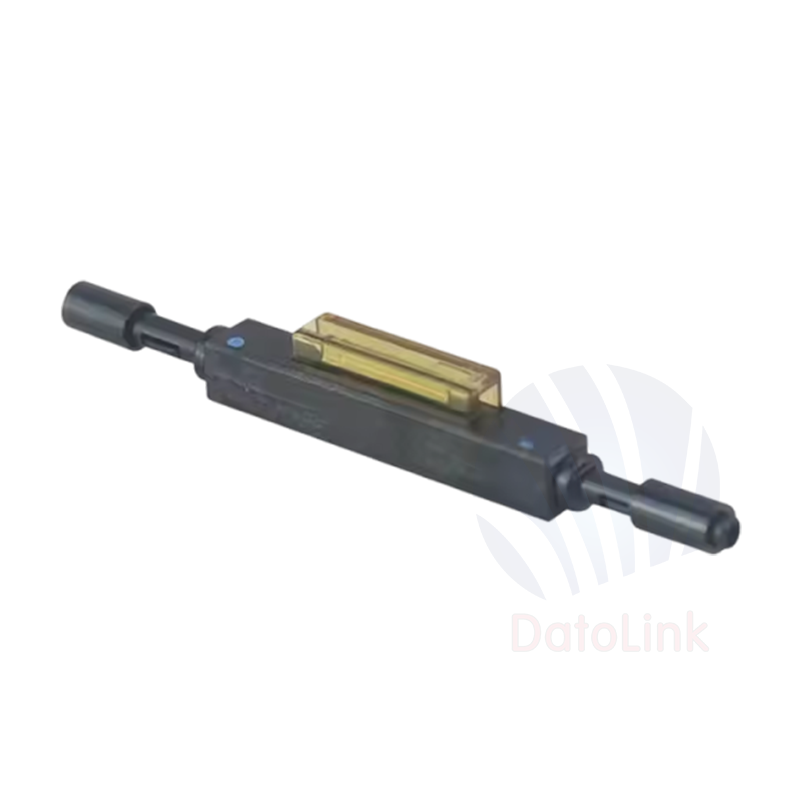

L925B Mechanical splice
Product Description
The Mechanical Splice is used for fast splice and has very good performance. Mechanical splicer can realize mechanical splice, Compared with the traditional hot melt technology, the biggest advantage is no welding machines to be needed, the power supply and other hard conditions. Anyway it can simply realize splice by manual and make the construction convenient. It can greatly reduce the cost of welding at the same time.
Features
The alternative site preset optical fiber connectors docking type thoroughly, and reduce the cost.
The connect time is less than 40 seconds (including optical fiber preparation).
In some sealing technology, use fixed number of year more than 30 years.
Tensile strength is greater than 9 kg, can be directly connected with ONU.
For fiber optic cable damaged (tensile and rat bite, etc.) or corridor to the skin in the cable.
Applications
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
|
Model |
L925BP |
| Application | FTTH Drop Cable |
| Optical fiber diameter | 125μm ( 652 & 657 ) |
| Fiber Type | Single Mode |
| Tight buffer diameter | 250μm |
| Insertion Loss | ≤ 0.10dB(1310nm & 1550nm) |
| Return Loss | ≤ -40dB |
| Fastening strength of naked fiber | >5 N |
| Tight packet layer clamping forces | >8 N |
| Operating Temperature | -40~+85°C |
