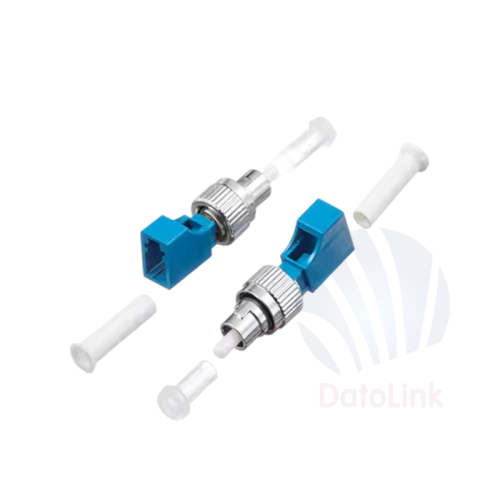

FC(M)-LC(F) Hybrid Adaptor
LC stands for Lucent Connector. The LC is a small form-factor Fiber optic connector.
The LC Connector uses a 1.25 mm ferrule, half the size of the SC. Otherwise; it is a standard ceramic Ferrule connector. The LC has good performance and is highly favored for single mode. APC polish is with an angle for 8 degrees in the ferrule.
FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are typical in test environments and for single mode applications. FC connectors were designed for use in high-vibration environments. The FC Connector is the most popular connector used today. It can be seen in every area of the communications environment, from a telecom’s distribution room to a LAN closet, the FC has set the standard for optical Fiber connectors. FCS are being replaced by SC and LC connectors.
About this product：
- High-Quality Fiber Adapter for FTTH Networks: This product is a high-quality FTTH single-mode fiber adapter designed for FTTH, FTTB, and FTTH network applications, ensuring reliable and efficient data transmission.
- Durable and Long-Lasting: With a durability of 1000 times, this adapter can withstand the rigors of frequent use, providing a long-lasting solution for your network needs.
- Low Insertion Loss and High Return Loss: Featuring an insertion loss of 0.2db and a return loss of >0.3db, this adapter minimizes signal degradation and ensures optimal data transmission quality.
- Wide Operating Temperature Range: Operating within a temperature range of -40°C to +70°C, this adapter can handle various environmental conditions, making it suitable for use in diverse network settings.
- Compliant with International Standards: Certified with CE, ROHS, and ISO 9001, this adapter meets international standards for safety, environmental sustainability, and quality management.
Features：
High corrosion resistance
High interface performance
High return loss
Easy to handle
Environmentally stable
Applications:
Optical data transmission connection
Fiber optic equipment testing and engineering rescue construction
|
Connector Type
|
FC, SC, ST, LC
|
|
Attenuation Accuracy
|
≤土0.5dB
|
|
Wave Length
|
SM:1310nm& 1 550nm MM:850nm
|
|
Fiber Type
|
SMF-28e
|
|
Ferrule Type
|
Zirconia Ceramic
|
|
Humidity
|
95%RH
|
|
Bandwidth
|
土40nm
|
|
Operating Temperature
|
-40C- +80C
|
|
Storage Temperature
|
-55C~ +85C .
|
