DTLTB-12E

Description：

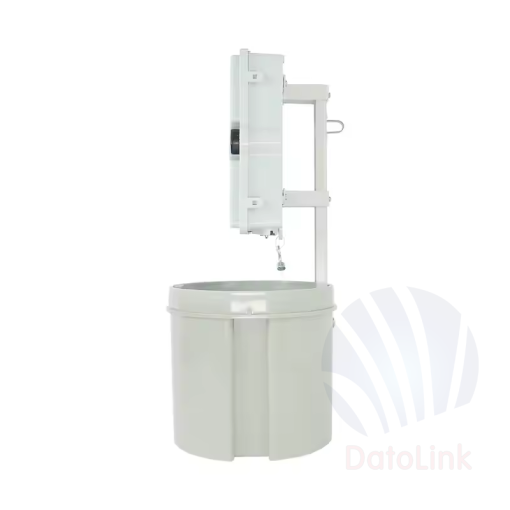

DTLTB-12E fiber optical pedestal is designed specifically for the housing of fiber access ternals to provide an additional protection to the fiber passive equipments installed, the green environment-friendly appearance,makes itself perfectly suitable for FTTH.



Features：

1. Water-proof design with IP-55 Protection level.

2.Self-locking cover mechanism, with additional padlock.

3.Removable cable entry plate with 3 * 50mm cable entrance,better performance for humidity-proof

4.Spacious inner space with universal mounting bracket,suitable for all types of FAT less than 230mm.

5.Made by high strength industrial-standard engineering plastic,better performance on anti-aging and UV-proof.

6.Stainless steel metal frame and anti-rusting components.

7.360 degrees air vents to keep a sound ventilation system.

8.Smart design on packing,saves up to 30% on shipping cost.



Product Name	DTLTB-12E
No. of Fiber	12
Material	Non-metallic ABS
Color	Light Green
Dimension	H*D(mm) 550*230
Max Capacity	FAT(ODP) Ports 12 Ports
Accommodate PLC	PLC 1×8(SC)
Water-proof	IP55
Application	FTTH FTTB FTTX Network
Warranty	Limited life
Product Keywords	fiber dome closure with pedestal ,12 cores distribution box,odp closure
