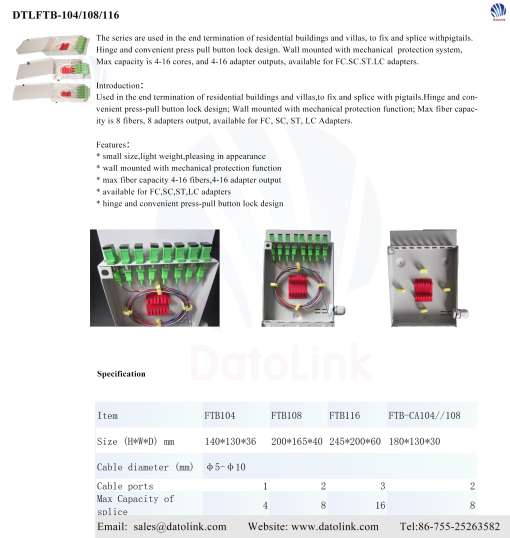

DTLFTB-104/108/116
The series are used in the end termination of residential buildings and villas, to fix and splice withpigtails. Hinge and convenient press pull button lock design. Wall mounted with mechanical protection system, Max capacity is 4-16 cores, and 4-16 adapter outputs, available for FC.SC.ST.LC adapters.
Used in the end termination of residential buildings and villas,to fix and splice with pigtails.Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function; Max fiber capacity is 8 fibers, 8 adapters output, available for FC, SC, ST, LC Adapters.
Features：
* small size,light weight,pleasing in appearance
* wall mounted with mechanical protection function
* max fiber capacity 4-16 fibers,4-16 adapter output
* available for FC,SC,ST,LC adapters
* hinge and convenient press-pull button lock design
|
Item
|
FTB104
|
FTB108
|
FTB116
|
FTB-CA104//108
|
|
Size (H*W*D) mm
|
140*130*36
|
200*165*40
|
245*200*60
|
180*130*30
|
|
Cable diameter (mm)
|
φ5-φ10
|
|||
|
Cable ports
|
1
|
2
|
3
|
2
|
|
Max Capacity of splice
|
4
|
8
|
16
|
8
|
