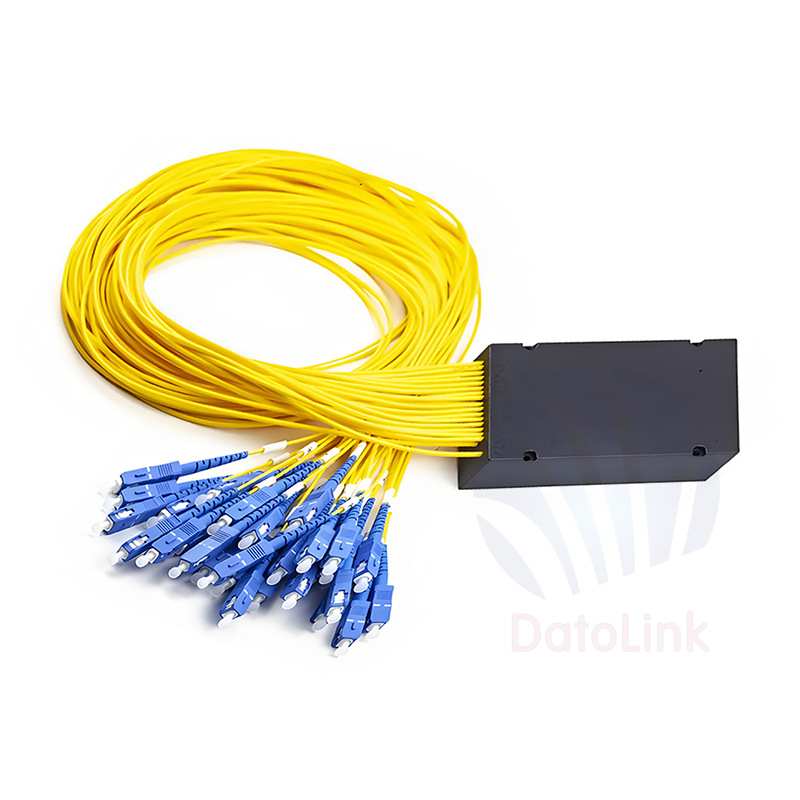

Features
- Low Insertion loss
- Low PDL
- Compact Design Good channel-to-channel uniformity
- Wide Operating Wavelength:From 1260nm to 1650nm
- Wide Operating Temperature:From -40℃ to 85℃
- High Reliability and Stability
Applications
- FTTX Systems
- CATV Links
- PON Networks Optical Signal Distribution
Parameters
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
Operating Wavelength (nm)
|
1260~1650
|
|||||
Fiber Type
|
SMF-28e or customer specified
|
|||||
Insertion Loss (dB)(S/P Grade)
|
4.0/3.8
|
7.3/7.0
|
10.5/10.2
|
13.7/13.5
|
16.9/16.5
|
21.0/20.5
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.5
|
Return Loss (dB) (S/P Grade)
|
50/55
|
50/55
|
50/55
|
50/55
|
50/55
|
50/55
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.3
|
0.3
|
0.3
|
0.4
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
Temperature Stability(-40~85 °C)(dB)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
Operating Temperature (°C)
|
-40~85
|
|||||
Storage Temperature (°C)
|
-40~85
|
|||||
Packaging Dimension (mm) (L×W×H)
|
100x80x10
|
100x80x10
|
100x80x10
|
120x80x18
|
120x80x18
|
141x115x18
|
