Features:
- Adopts world top brand pump lasers and the OFS fiber of United States, advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
- Perfect APC, ACC, ATC control, users use in different networks, good ventilation design and temperature-controlled fan, ensure the long life and high reliability of PUMP laser.
- Using digital control chip, remote or local output power adjustable.
- Excellent protection circuit design, with light detection, optical return loss monitoring. Great protection of lasers and light path safety.
- Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
- Demultiplexer for 1310/1490/1560nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB);
- The total output optical power is optional: 2-10W (33-40dBm);
- The front panel can be removed and replaced flexibly according to the number of output ports; Can add a built-in optical switch module to facilitate the expansion of the device function; Cooling fan supports online replacement;

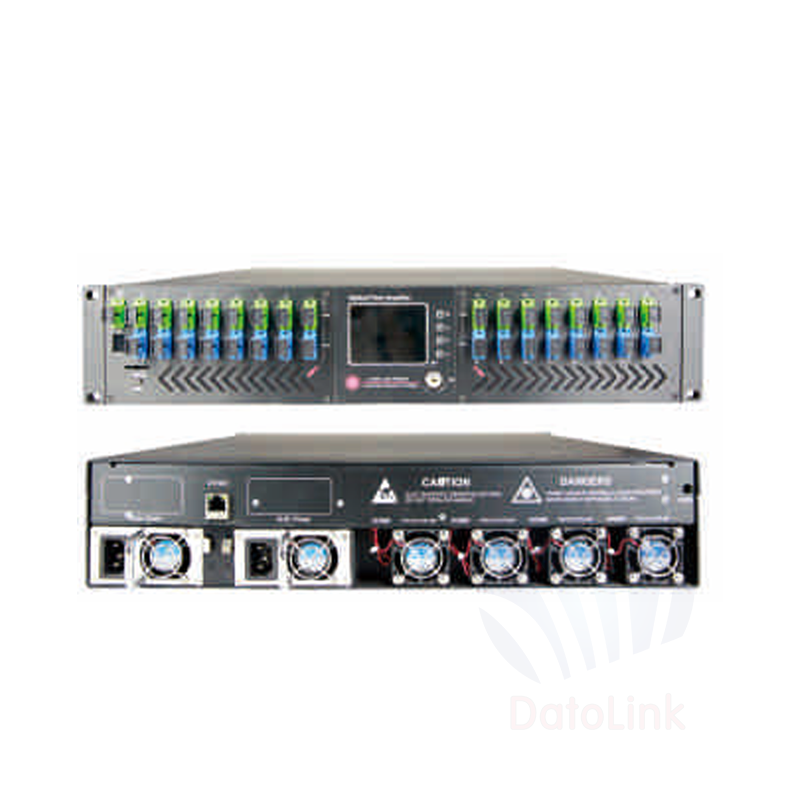

- The front panel LCD provides the operating parameters and alarms of the entire unit. RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.
Technical Parameters
|
56EYA2U
|
Wavelength
|
1535-1565nm
|
Input power range
|
-5dBm~+10dBm(normal input -2dBm~+5dBm)
|
Output optical power
|
33dBm~40dBm(WDM -1dBm)
|
Output port
|
SC: 16/32/64;LC: 32/64/128
|
Noise figure
|
≤ 5.0dB(Pin=0dB)
|
Polarization dependence loss (PDL)
|
< 0.3dB
|
Polarization dependence gain (PDG)
|
< 0.4dB
|
Polarization mode dispersion
(PMD) |
< 0.3dB
|
Pump leakage power
|
< -30dBm
|
Echo loss
|
≥ 56dB
|
Optical connector
|
SC/APC;SC/PC;LC/APC;LC/PC
|
Supply voltage
|
220V(AC90V~265V)&110V(AC90V-130V)&48V(DC30~72V)
|
Consumption
|
≤ 100w
|
