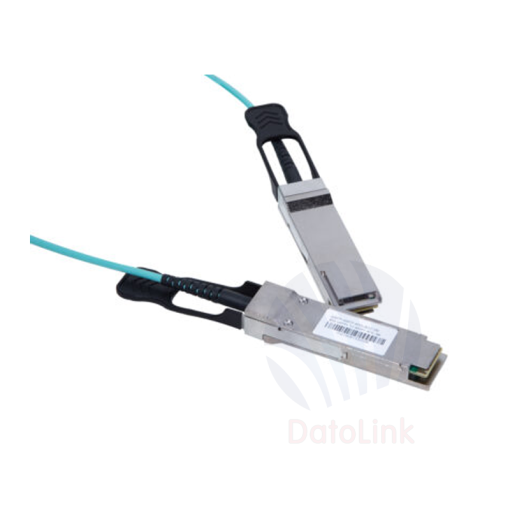

40G QSFP-QSFP AOC

Features :

• QSFP+ conforms to the Small Form Factor SFF-8436
• 4-Channel Full-Duplex Passive Copper Cable Transceiver
• Support for multi-gigabit data rates :1.0 Gbps – 10.3125 Gbps (per channel)
• Maximum aggregate data rate: 41.25 Gps (4 x 10.3125Gbit/s)
• Copper link length up to 5m (passive limiting)
• High-Density QSFP 38-PIN Connector
• Power Supply :+3.3V
• Low power consumption: 0.02 W (typ.)
• I2C based two-wire serial interface for EEPROM signature which can be customized
• Operating case temperature: Standard : 0 to +70°C(default) Industrial : -40 to +85°C
• RoHS Compatible

Application :

• 10G/40Gigabit Ethernet
• InfiniBand 4XSDR, DDR, QDR
• Switches, Routers, and HBAs
• Data Centers
• 2, 4, 8, 10 Gigabit Fibre Channel
