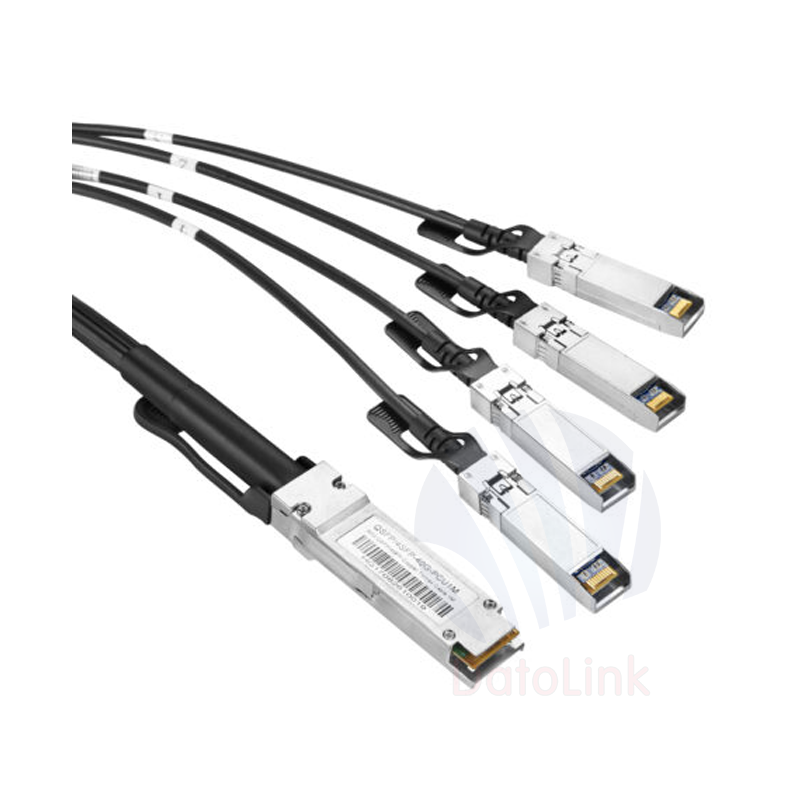

40G QSFP-4SFP DAC
High Speed 40G QSFP+ to 4×10G SFP+ Direct Attach Cable copper cable assemblies are a low cost alternative for short reach 4X applications. They are designed to be fully compatible in form factor and optical/electrical connections according to the QSFP Multi-Source Agreement.QSFP+ connectors provide four channels of data in one pluggable interface.
Features:
- 4-Channel Full Passive Copper Cable Transceiver
- QSFP+ conforms to the Small Form Factor SFF-8436and SFF-8431
- Support for multi-gigabit data rates up to 10.5Gbps
- Data rates backward compatible to 1Gbps
- Maximum aggregate data rate: 40 Gbps (4 x 10Gbps)
- Hot-DensityQSFP 38-PIN footprint
- I/O Connector designed for high speed differential signal applications
- Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
- Compatible with industry standard SFP cages +Switches
- Temperature Range: 0~ 70 °C
- RoHS-6 Compliant
Application:
- 10G/40G Ethernet
- InfiniBand, Fiber Channel 4G/8G/10G
- Sonet Multiplatform support
- High Performance Computing Clusters
- High End Servers
- Metro Network Switch/Cross Connect
